Hollyseal® 1mm Thick White Self-adsorption PVC Foam

资料下载

Product introduction

Hollyseal® PVC foam is a closed-cell polyvinyl chloride foam designed to provide an economical solution for sealing light, air and moisture. It can provide performance that meets various application scenarios by adjusting the density,hardness,thickness and resilience of the foam. It is very suitable for various applications such as body damping,door and window sealing, water tank sealing, HVAC sealing, and electronic product cushioning application.


We manufacture finished goods in main types of PVC foam, which are:

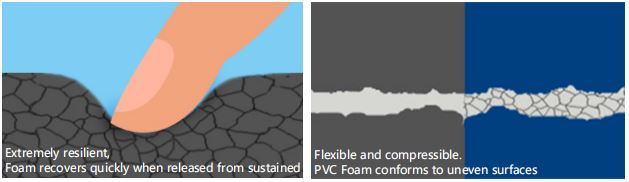

●Quick recovery foams – where the material immediately recovers after compression
●Slow recovery PVC foams – ideal for filling irregular surfaces


Product feature

●30% compression provides an excellent seal against light, dust and water

Low compressibility of the pad allows layers of glass to remain separated

It provides excellent shock absorption

●Leaves no residue or “ghosting marks” on glass

●Resistant to weather, UV rays and chemical

●Thicknesses from 1 mm up to 25 mm

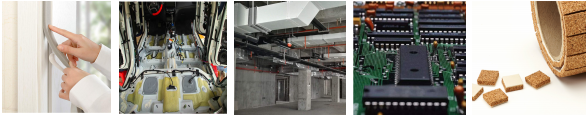

Product application

●HVAC seals

●Auto parts seals

●Appliances seals

●Transportation

●Foam weatherstripping

●Cork spacers



Technical information

Density180±20 kg/m3
Tensile Strength≥350kPa
30% Compression Set≤6%
    Hardness(Shore 00)30±5°
Elongation ≥150%
Flammability

 UL-94 HF-1/HBF

  FMVSS 302

      (V0 can be customized)


Specification

MaterialPVC foam
ColorBlack,Grey,White,Brown,Special colors can be customized
Thicknessin0.063,0.079,0.126,0.157,0.189,0.197,0.236,
0.248,0.315,0.374,0.5,0.625,0.75,1
mm1.6,2,3.2,4,4.8,5,6,6.3,8,9.5,12.7,16,19,25.4
Lengthft16.4,20,25,32.8,50,100
m5,6.1,7.6,10,15.2,30.5
Width dimension(mm)1020,1350,1422,Specialcan be customized
